Description
GSDT-EDFA is a 1550nm high performance Erbium Doped Fiber Amplifiermodule designed as an integral part of high density Excelsior 3RU
Headend system. With a highly reliable single or double 980nm Pump Laser,low noise figure, and a wide range of optical output powers (14dBm to

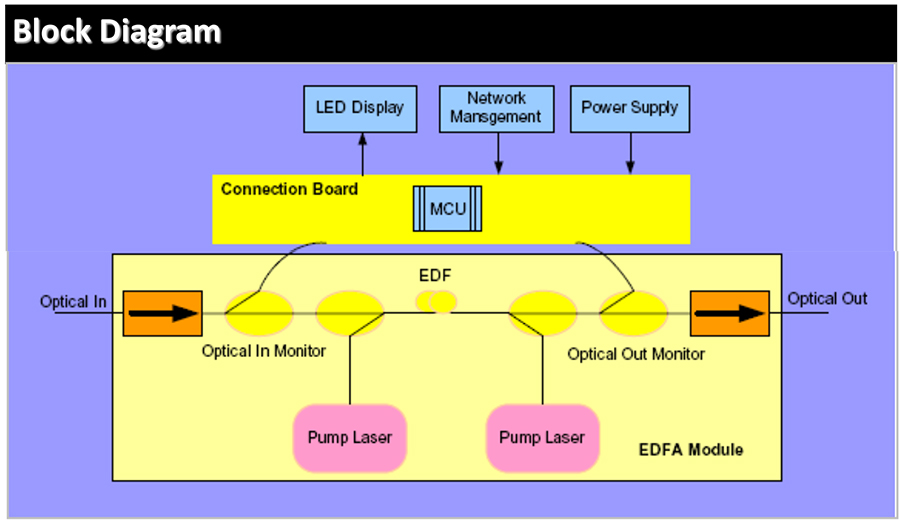

23dBm). This EDFA module is an ideal solution for both analog and digital signal transmission. The MCU circuit fully monitors the status and controls the parameters via remote communications. All these can be achieve either locally through the front panel LED, on the EDFA module or remotely with software.

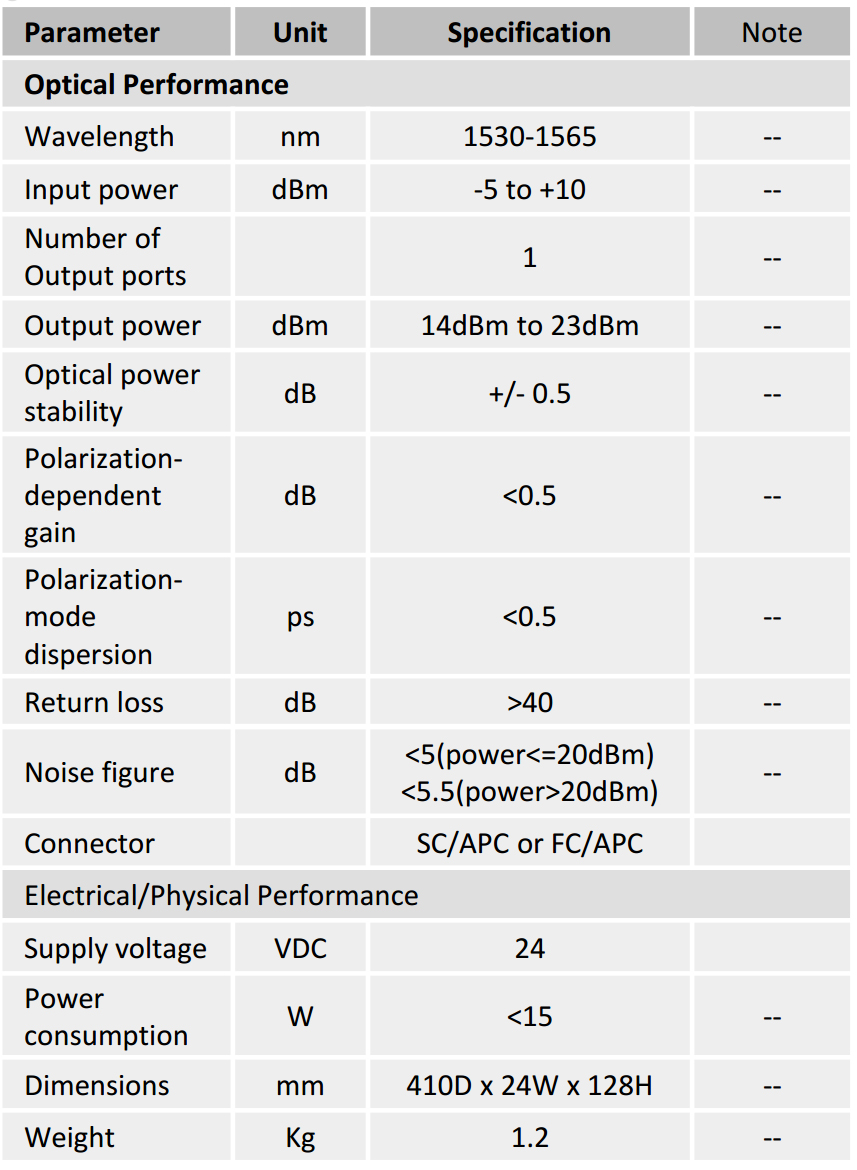

Specifications
Features
■ Wide Range of Optical Output 14dBm to 23dBm
■ Low noise figure
■ Single or double Pump Laser design
■ High reliability

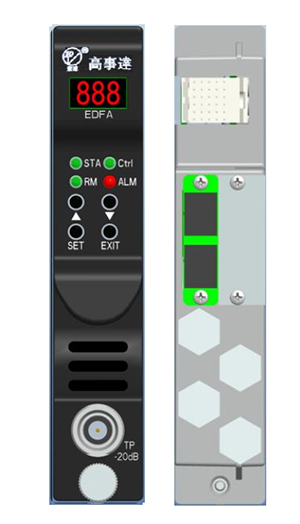

■ Front Panel LED Display
■ Analog and Digital Signal Transmission

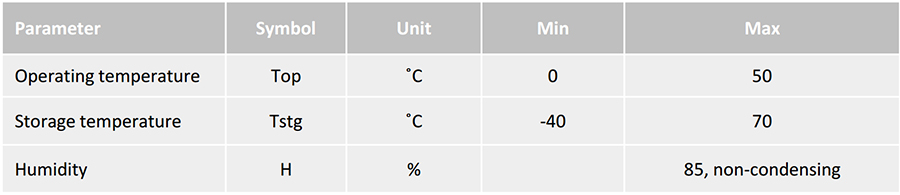

Absolute Maximum Ratings
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress ratings only. Functional operation of the device is not implied at these conditions. Exposure to absolute maximum ratings for extended periods can adversely affect device reliability.
Ordering Information
